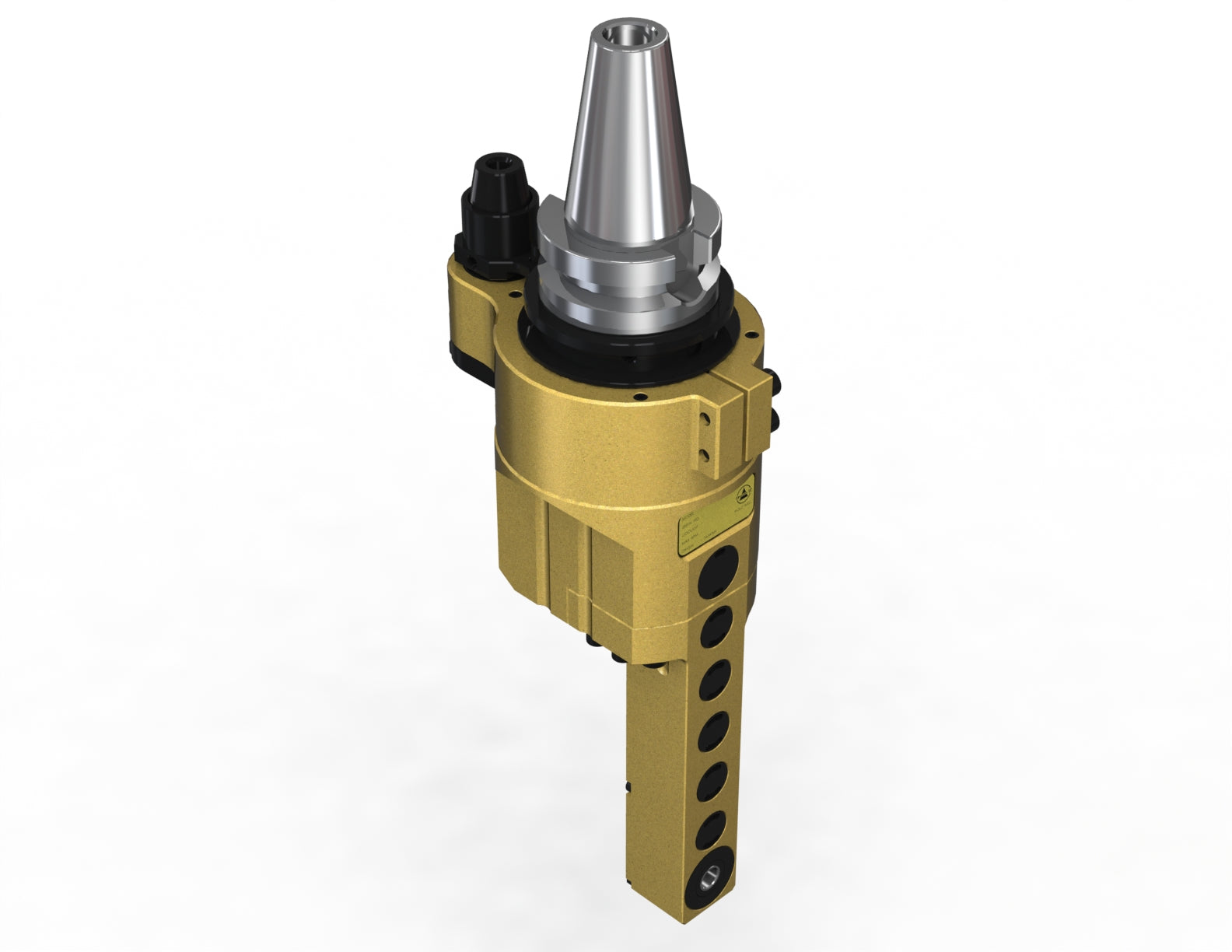

BT40-ADC6 90° Ultra Slim Angle Head - AHL-BT40-C8.65
BT40-ADC6 90° Ultra Slim Angle Head - AHL-BT40-C8.65

BT40-ADC6 90° Ultra Slim Angle Head - AHL-BT40-C8.65

Please contact us if you are interested in this product.

Angle heads allow 3-axis machines to be more versatile.  Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned.  This allows multiple operations in just one setup.  With angle heads, you're not simply just adding a tool, but increasing your machine's capability.

  • BT40-ADC6 Ultra Slim Angle Head
  • 6,000 MAX RPM
  • MAX TORQUE: 8Nm
  • MAX DRILLING: 6Nm
  • TAPPING: MAX. M5
  • RATIO 1:1
  • OUTPUT ROTATION: REVERSE TO INPUT ROTATION

FEATURES:

  • Compact and longer body design is suitable for machining the deep-hole and deep-slot.
  • ATC Capable. Increases productivity.
  • Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. Allows higher clamping torque and cutting direction can remain during machining.

**Lead time may vary based on manufacturer's stock**
