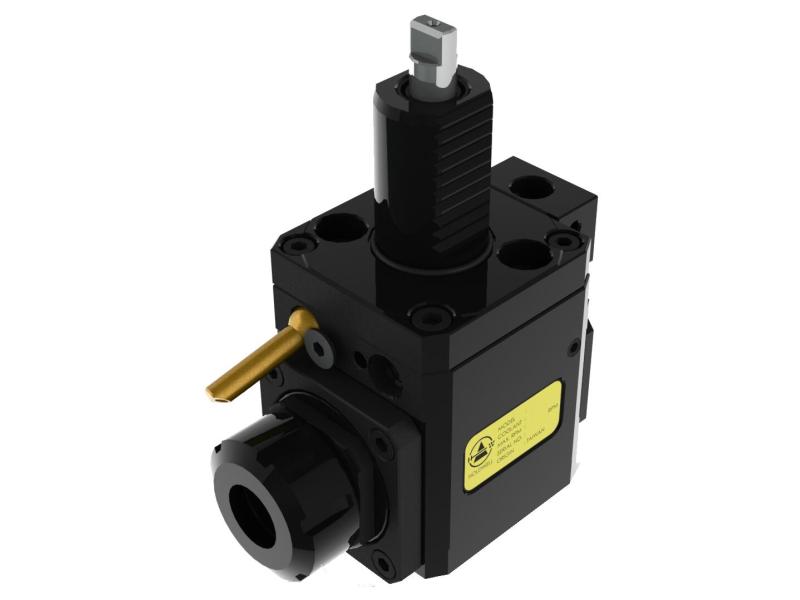

Radial Driven Tool Holder VDI40 DIN 1809 THB-B06.90-40A
Our live tools are customized for your CNC machine's specific turret assembly. Live tooling will allow you to reduce the operations required to complete a job.
Hold Well Radial Driven Tool Holder

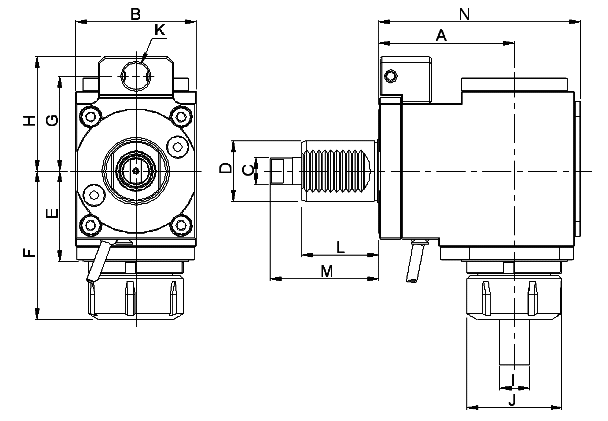

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B06.90-40A | 90 | 80 | 18 | 40 | 60 | 98.5 | 63/70 | 73/80 | ER40(4~26) | 63 | 16 | 51 | 72 | 134 | 8.1 |
Unit：mm
- Tool Holder is produced in accordance with DIN 69880
- Driven coupling - DIN 1809
- ER40 Output Interface
- For left and right hand turret
- External coolant
- Gear Ratio 1:1
- Max RPM - 4,000
Our live tool holders will allow easy setup on your CNC lathe. Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. CNC Tool Solutions offers a wide range of VDI driven radial and axial tool holders that you need to stay productive. Let us help you find the right tool holders for your specific lathe.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
